Alumasc

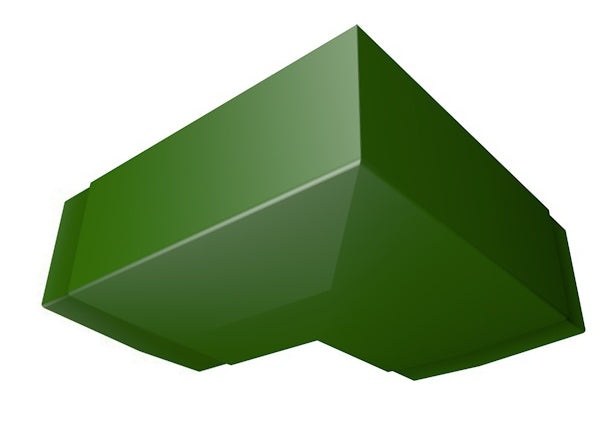

Alumasc Skyline - Deepline Modular Component 90 Degree Apex Angle
The Alumasc Skyline DEEPLINE Aluminium Modular Window Kits provide a flexible system for creating bespoke window surround designs using individually sourced components. With a 100mm projection and face widths available in 100mm, 150mm, and 200mm, the modular system allows architects and installers to specify window pods in a wide range of sizes and configurations.
The modular range includes straight length components in 0.5m, 1m, 1.5m, 2m, and 3m options, as well as wall brackets, 90-degree corners, 90-degree apex angles for corner windows, and loose jointers for connecting sections. Components are designed to be used together with the Skyline bracket system, which fixes directly to the building façade for fast and efficient installation. Wall brackets and unions are sold separately, and installers should allow for a bracket at each corner and at maximum 500mm intervals, as detailed in the Skyline installation guide.
Manufactured from strong, non-combustible 2mm aluminium with robust 3mm thick aluminium brackets, the DEEPLINE modular system eliminates the need for costly joinery or boxing while delivering long-term durability and low maintenance. All components are supplied in a polyester powder-coated unicolour finish, with a choice of 26 standard RAL colours. Other colour options are available on request, subject to surcharge.
Skyline DEEPLINE modular window kits are suitable for both new build and refurbishment projects, offering a versatile, ecological solution with sharp, modern detailing and a lifetime value.
Please note: Product images are for illustration purposes only and may not represent exact profiles or dimensions.
