Alumasc Skyline Door Canopies - Aluminium CA160 Canopy System

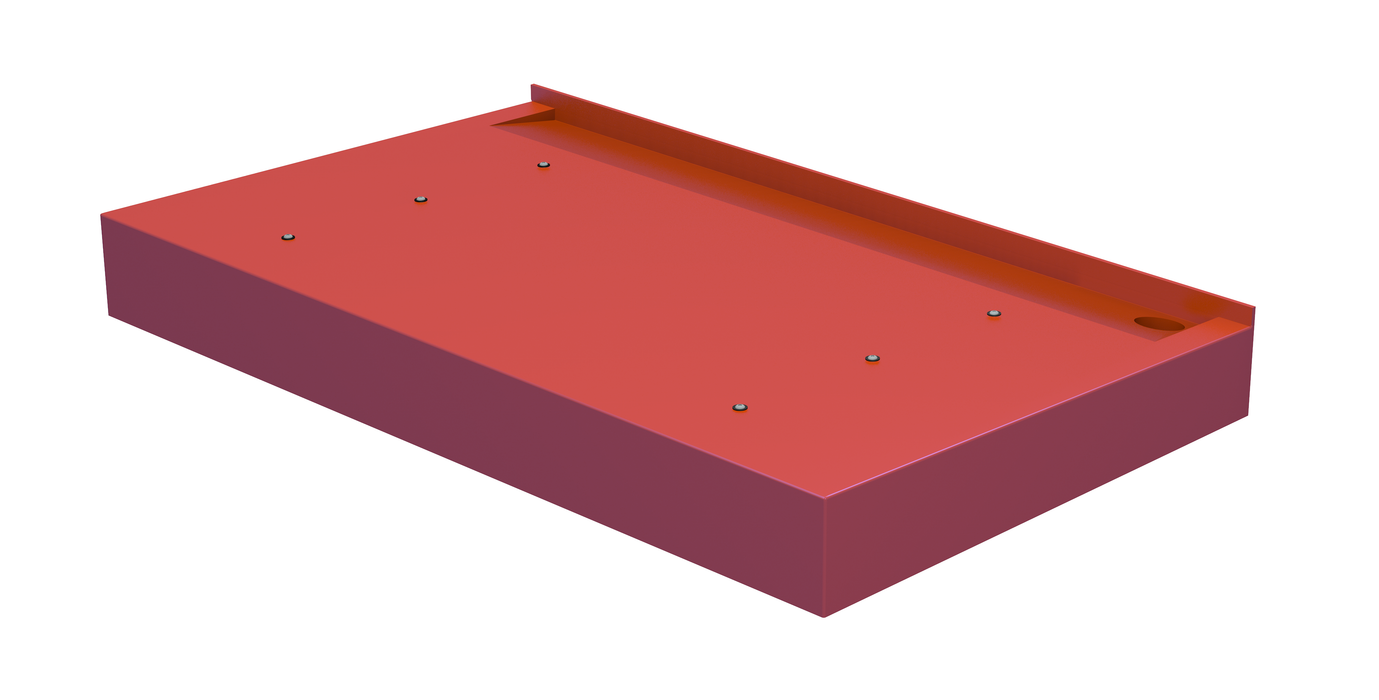

The Alumasc Skyline Aluminium CA160 Canopy System combines bold design with integrated functionality. Featuring a striking 165mm front edge profile, this canopy incorporates built-in drainage, directing rainwater into a small outlet within the integral gutter at the building façade. The outlet is designed to suit 63mm aluminium downpipes, which are not supplied, and can be configured on either the left or right side to match project requirements.

The CA160 canopy has a standard projection of 900mm and is available in widths of 1.5m, 2m, and 2.5m to suit a variety of doorway and opening sizes. Each canopy is supplied with support brackets, which must be fixed at maximum 500mm centres. The 1.5m length is supplied with three brackets, the 2m length with four, and the 2.5m length with five. Anchor bolts are not included and must be sourced separately.

Manufactured from strong, recyclable aluminium, the system can be supplied in mill finish (unpainted) or from the range of standard polyester powder-coated colours. Alternative colours are available to special order, subject to additional cost.

The standard lead time for Skyline aluminium canopies is approximately 15 working days, with bespoke sizes available on request.
